SPECIFICATIONS

Audio output: HDMI x1/3.5mm combo jack x1

Brand Name: MINIS FORUM

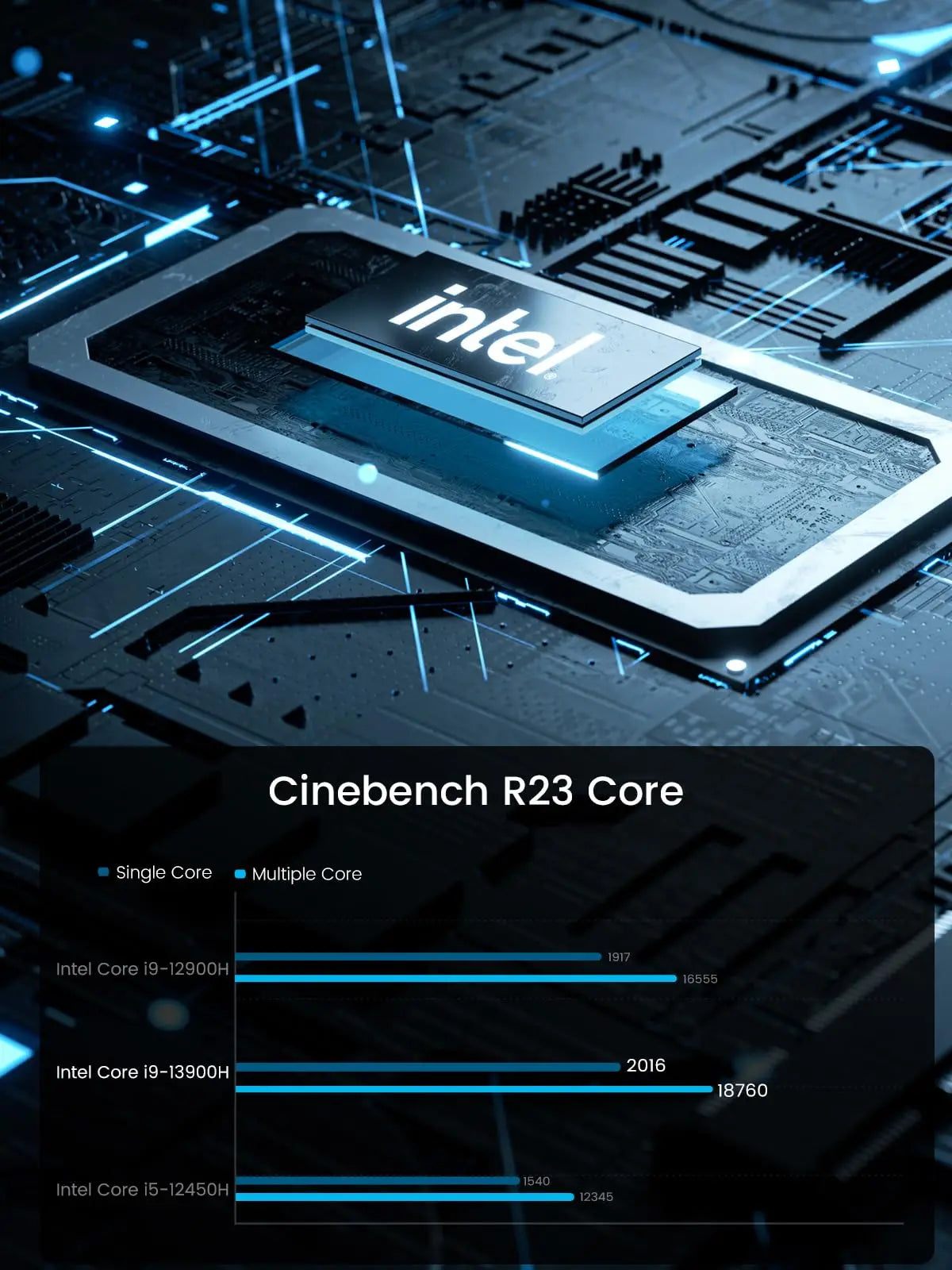

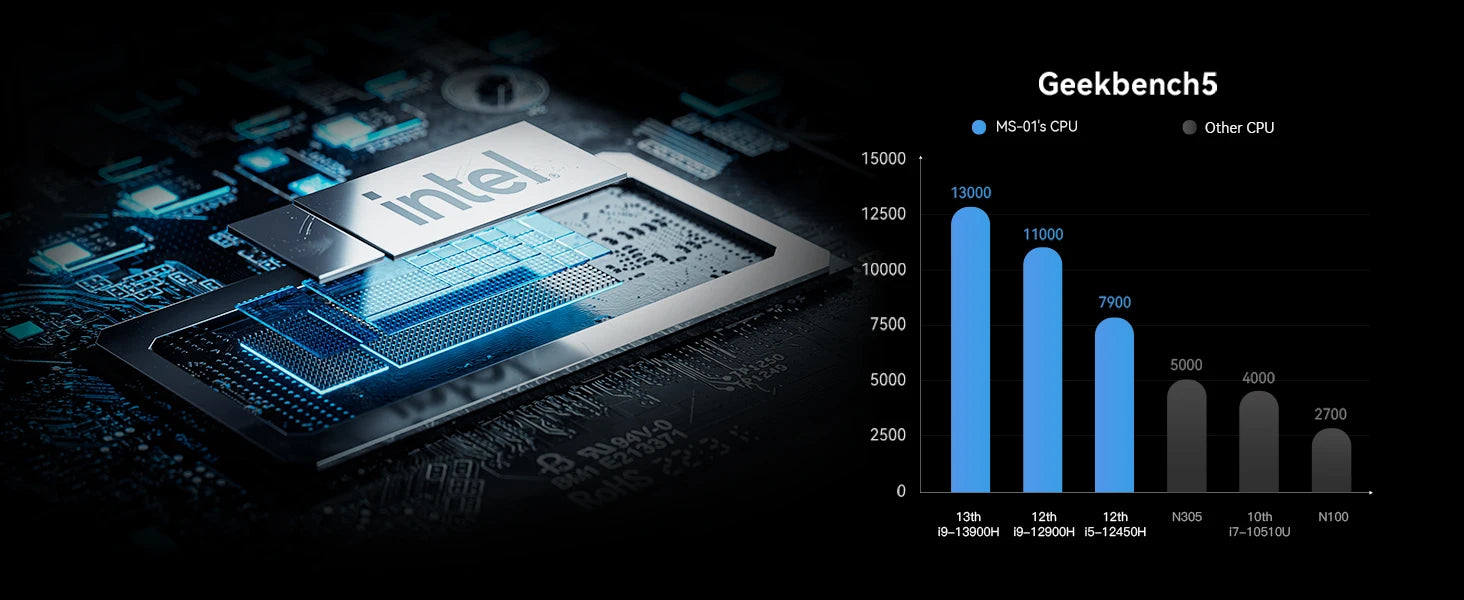

CPU: Intel Core i9-13900H

Certification: CE,FCC,RoHS

Core: 14 cores/20 threads

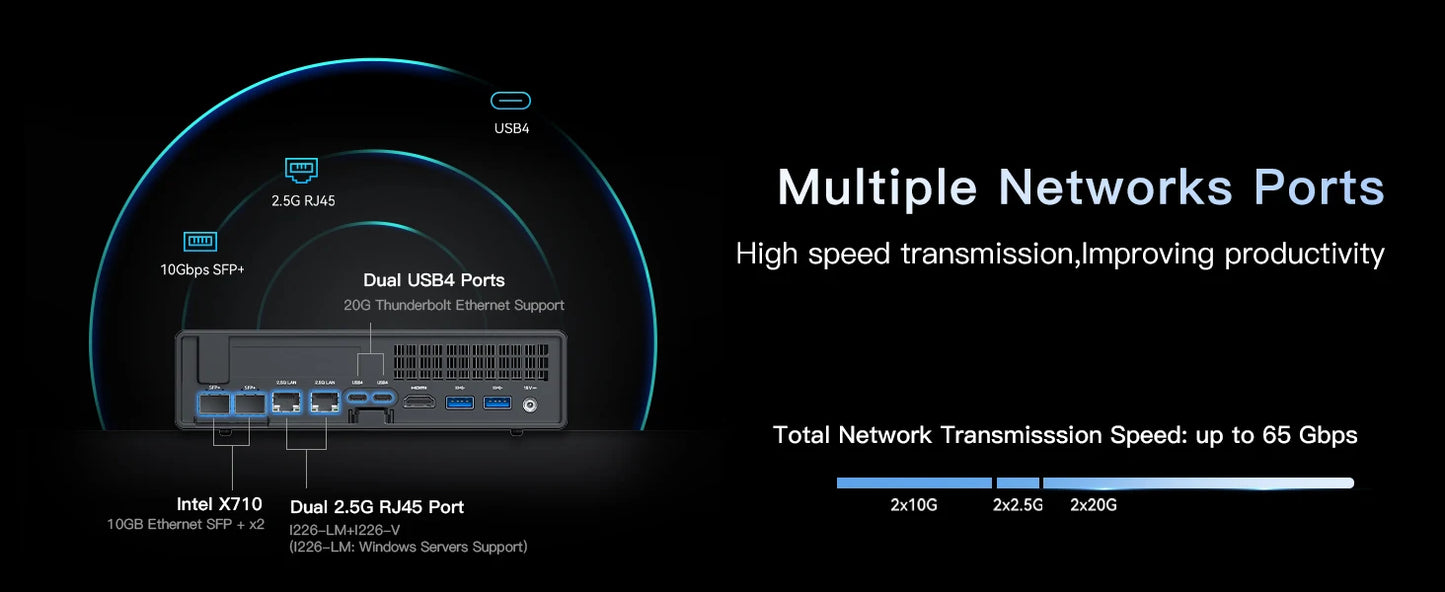

Ethernet: 10Gbps SFP+LAN x2;2.5Gbps RJ45 LAN x2

Graphics: Intel Iris Xe Graphics(Graphics frequency 1.5GHz/1.45GHz)

Graphics Card Type: Dedicated Card

Hard Drive Capacity: 1TB

Hign-concerned Chemical: None

Memory: DDR5-5200MHz Dual Channel(SODIMM slots x2,up to a total maximum of 64GB)

Memory Capacity: 32 GB

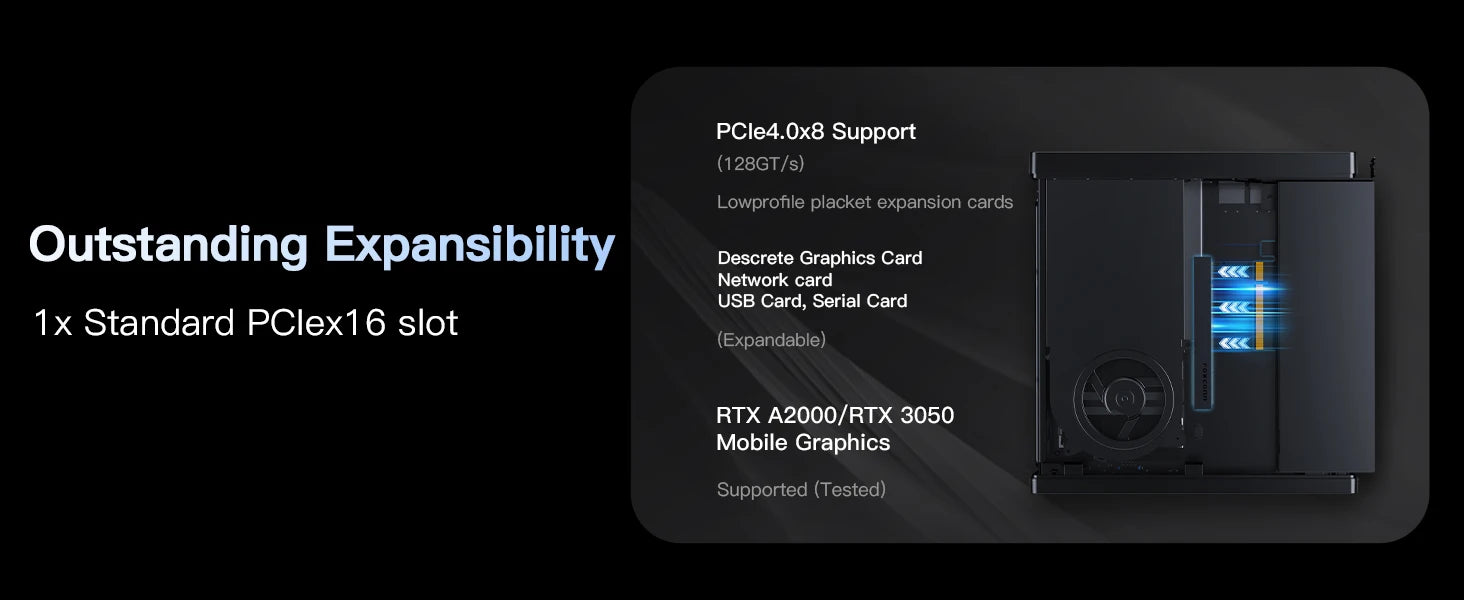

Memory expansion: 1x PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed)

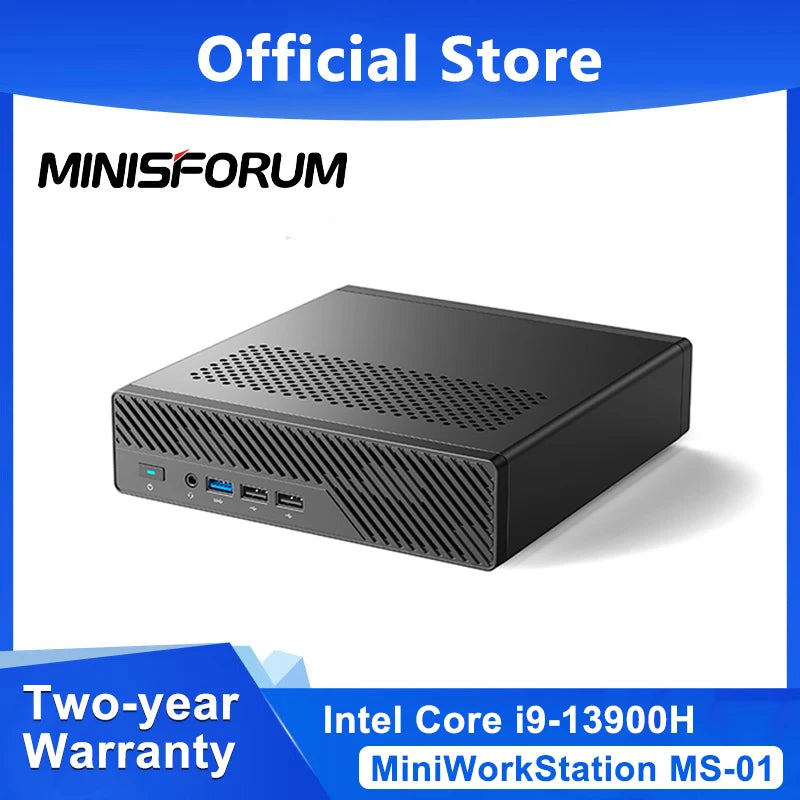

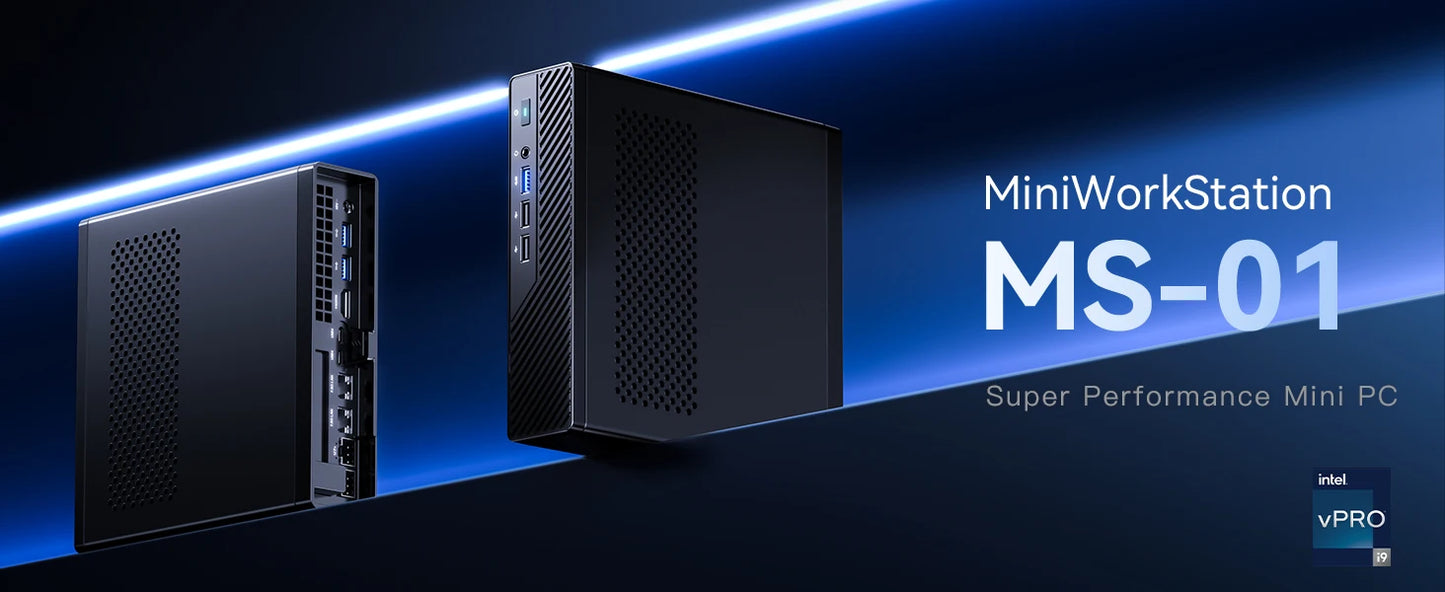

Model: MS-01

Model Number: MS-01

OS: Windows 11 Home

Origin: Mainland China

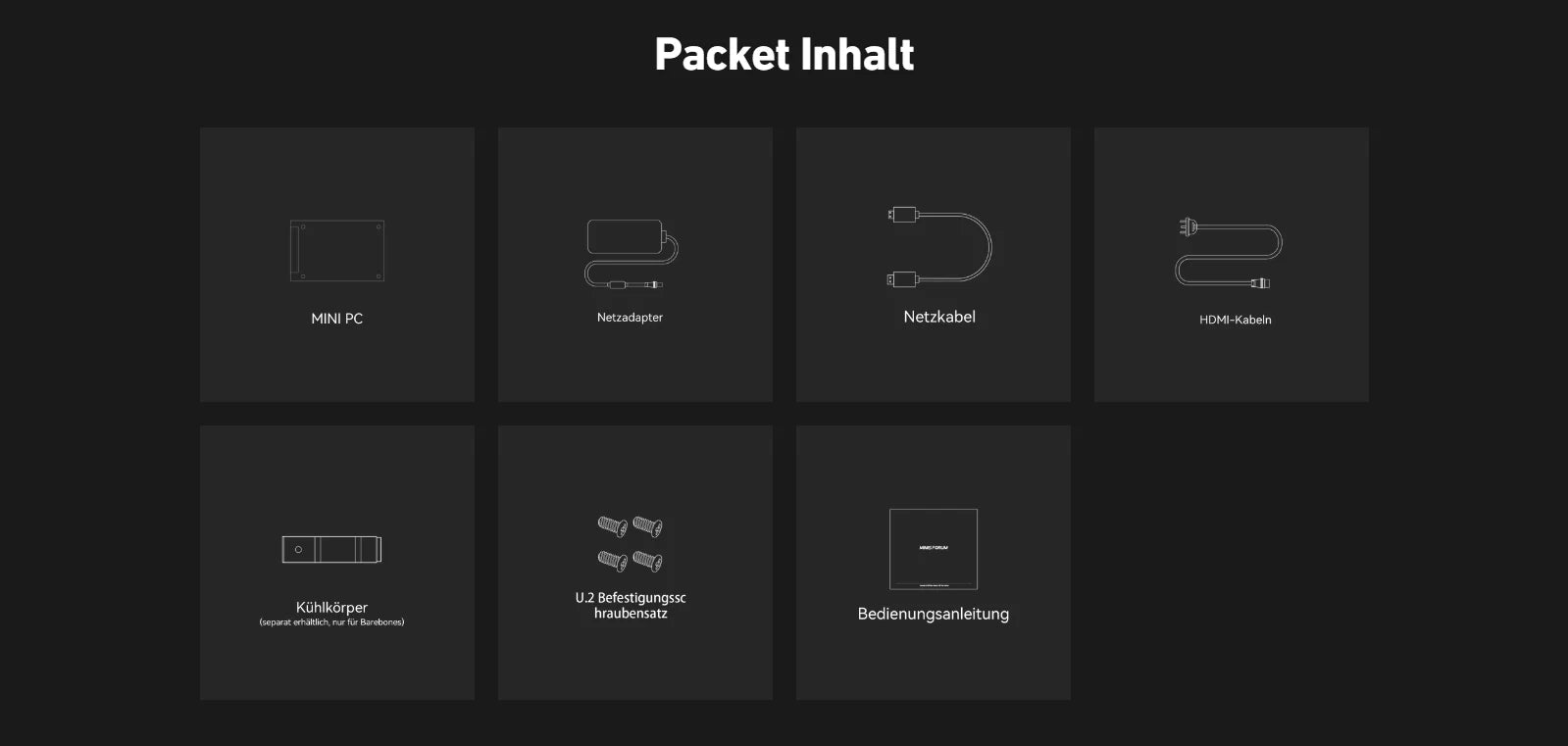

Package contents: 1x MS-01 main unit ;1x Power adapter ;1x Power cable ;1x U.2 conversion plate ;1 x SSD heat sink ;1x Mounting screw ;1x HDMI cable ;1 x User Manual

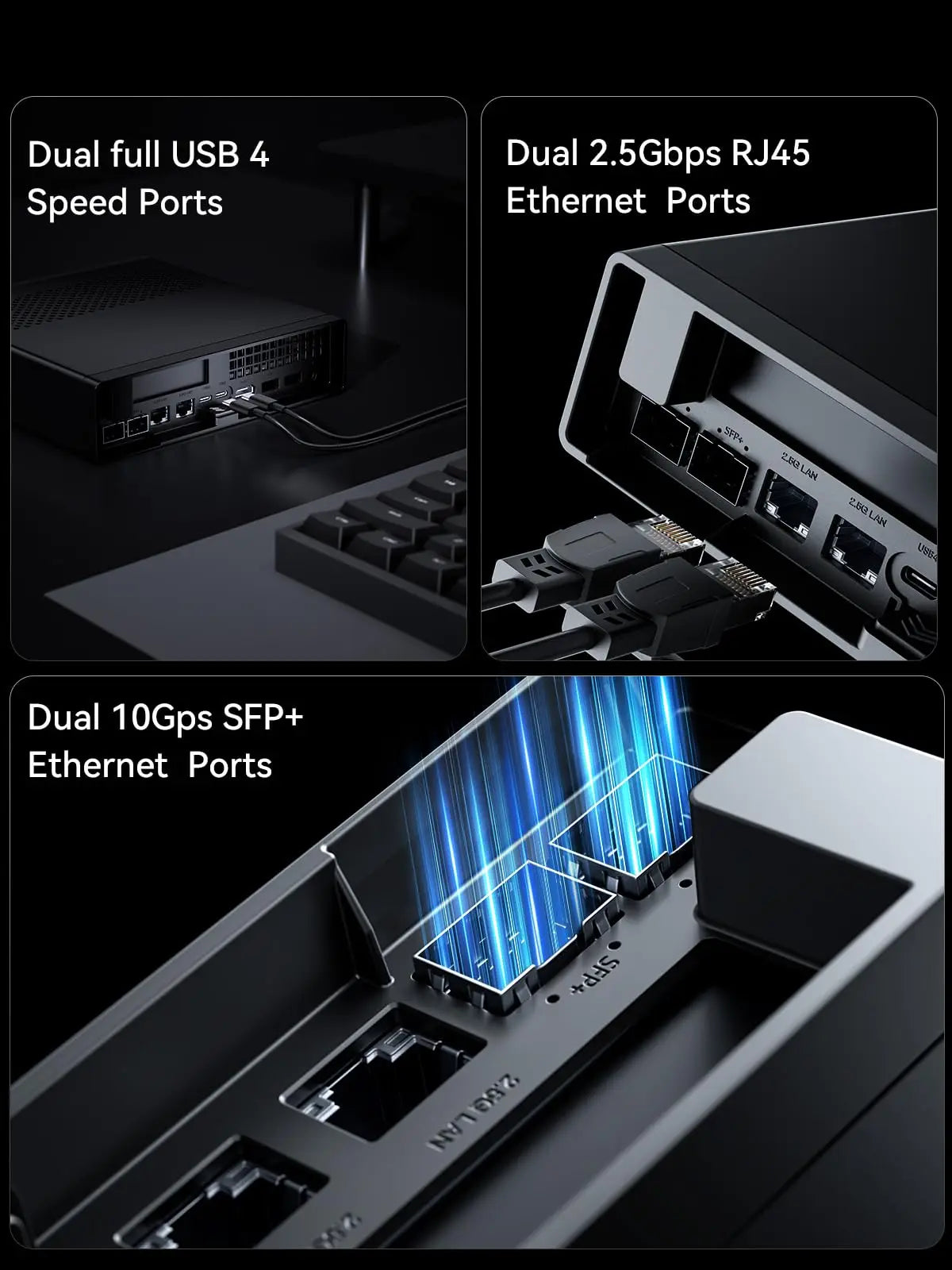

Peripheral interface: 10G SFP+ ports x2 ;RJ45 2.5G Ethernet ports x2 ;USB3.2 Gen2 Type-A ports x2 ;USB3.2 Gen1 Type-A ports x2 ;USB2.0 Type-A ports x2 ;USB4 ports x2 (Alt PD) ;HDMI x1 ;3.5mm combo jack x1

Power supply: DC 19V (including power adapter)

Processor Brand: Intel

Processor Model: Intel Core i9-13900H

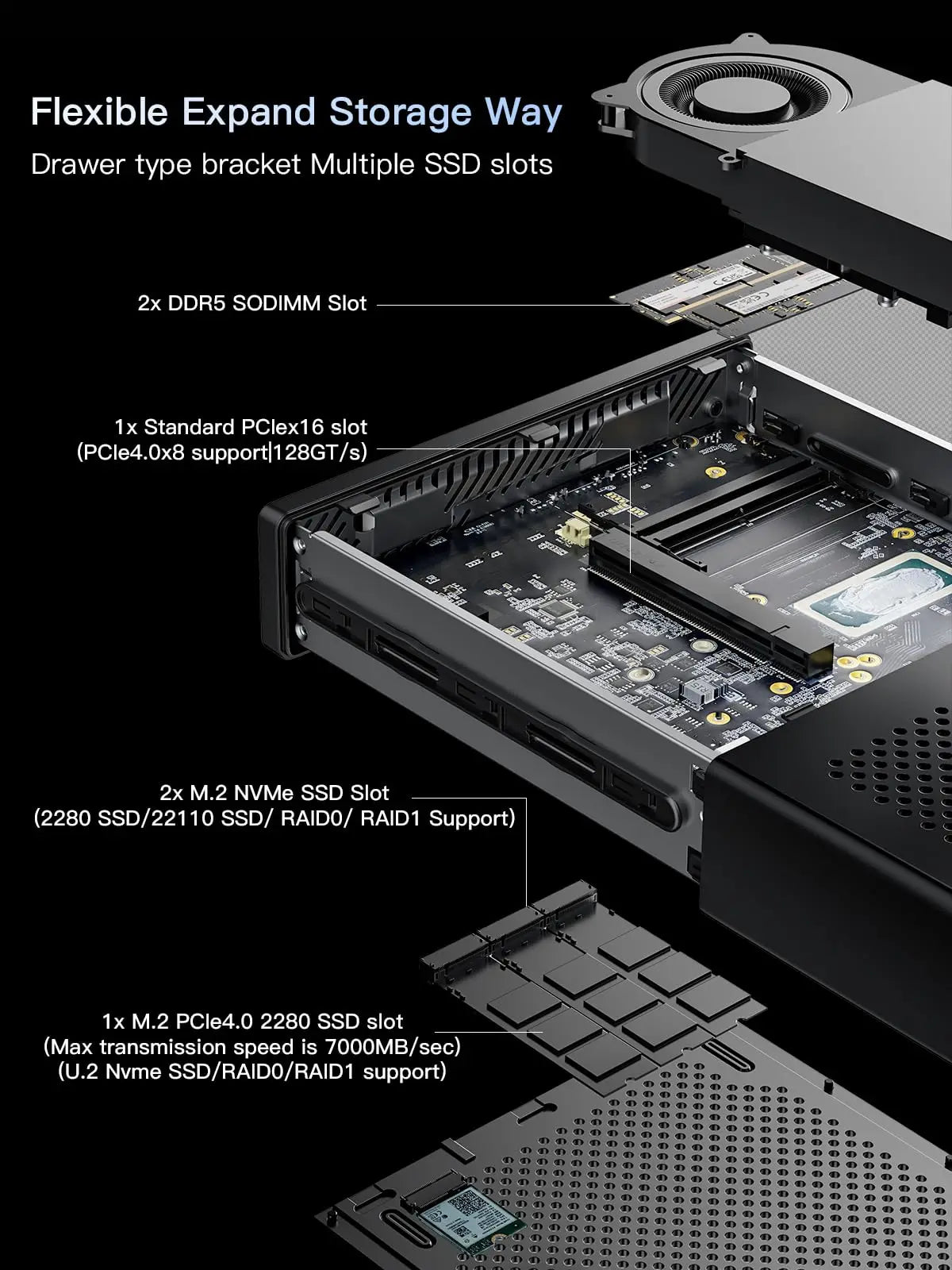

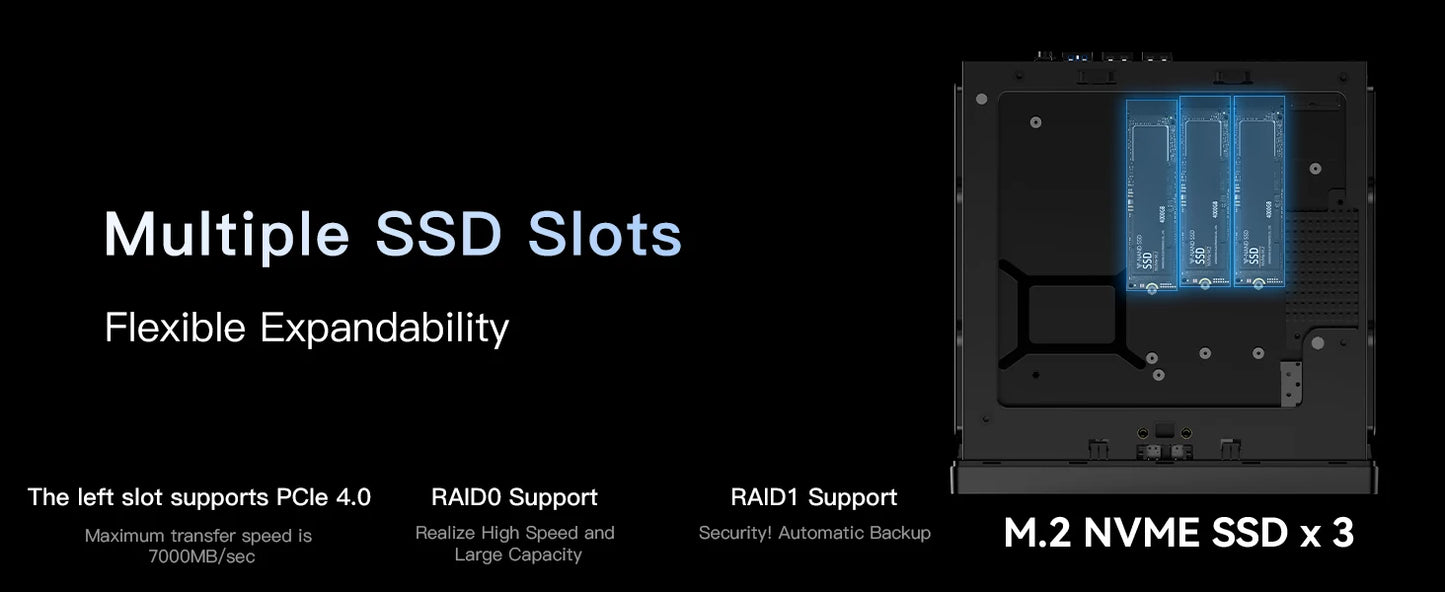

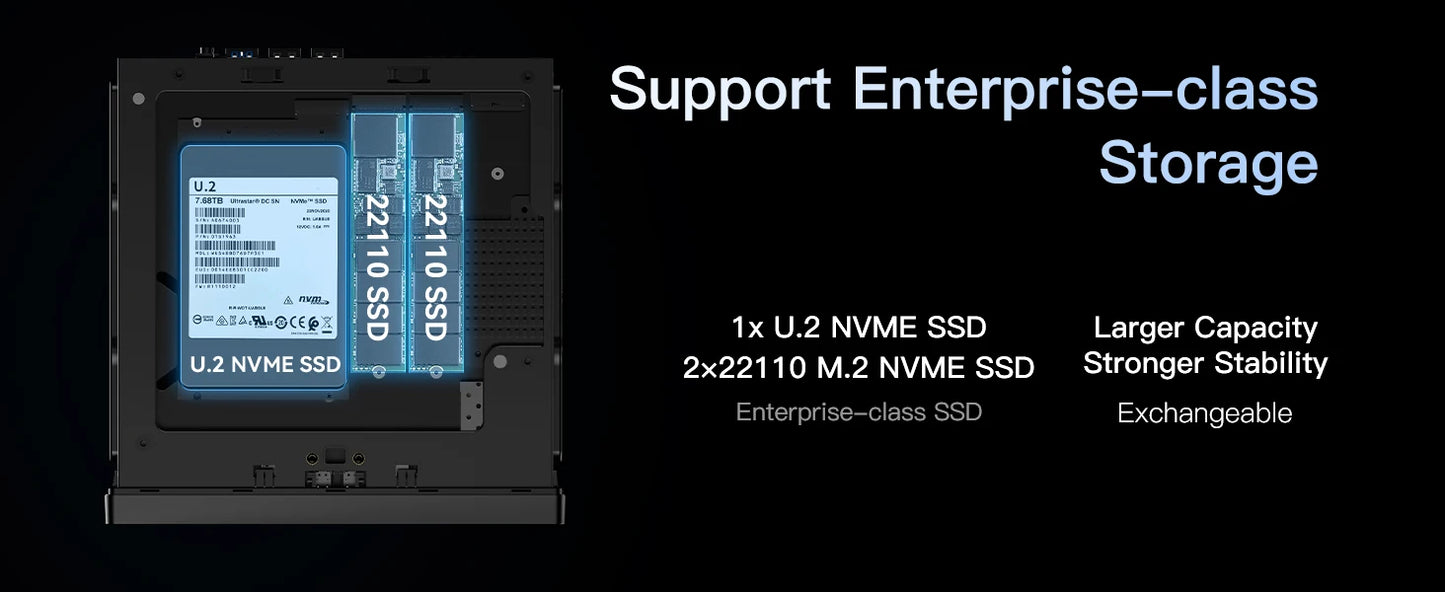

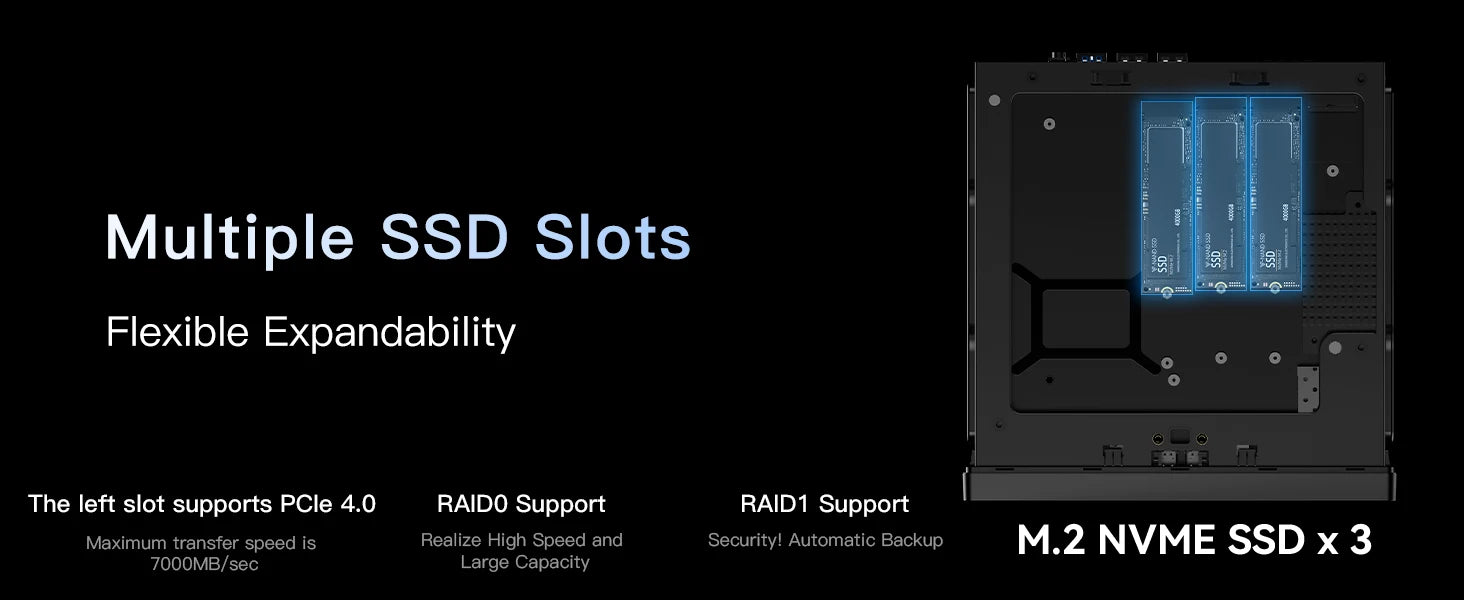

SSD: M.2 2280 NVMe SSD slot (Alt U.2) (PCIe 4.0 x4) x1;M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x4) x1;M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x2) x1

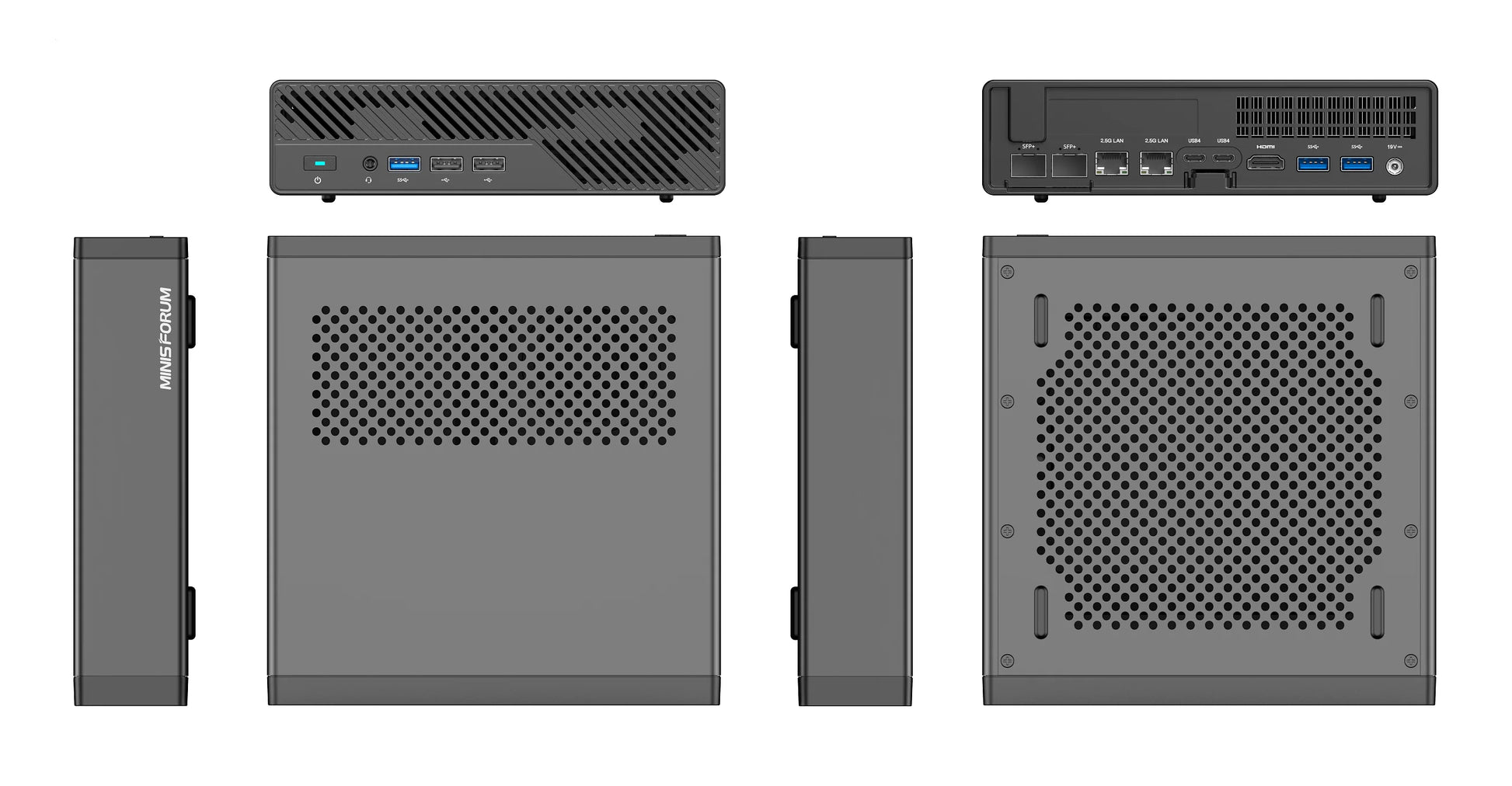

Size: 196 x 189 x 48mm

Type: Mini Desktop,Mini PC

Use: Multimedia

Video output: HDMI 2.0(4K@60Hz);USB 4 (8K@30Hz) x2(Note: Recommended cables - HDMI to HDMI/USB-C to USB-C)

Wireless connectivity: M.2 2230 Wi-Fi support (Wi-Fi 6, BT5.2)

FAQ

1.Who are we?

We are based in Guangdong, China, start from 2018,sell to Eastern Asia(30.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),South America(10.00%),North America(10.00%),Eastern Europe(10.00%),Domestic Market(5.00%).

There are total about 100 people in our office.

2.How can we guarantee quality?

Always a pre-production sample before mass production;Always final Inspection before shipment;

3.What can you buy from us?

AMD Ryzen, Intel Core, Intel Pentium, Intel Celeron, Intel Atom

4.Why should you buy from us not from other suppliers?

We have a complete personal computer industry chain:design/development/production/sales/brand operation, We are the TOP1 partner of AMD & the TOP3 partner of Intel in the IOT filed of mainland China now; the partner of Microsoft China.

5.What kind of express do you usually arrange?

For samples, we usually arrange FedEx or DHL. For goods over 100 sets, we will suggest customers to choose air freight, which is more cost-effective.

6.What is the lead time?

The delivery time for samples is 7 days, 10 days for 50 sets, and 15 days for more than 100 sets.

About warranty

The warranty period for Minisforum products is 24 months. 1-month machine warranty, 24-month hardware warranty. In each case, the warranty period begins on the date of purchase by the original consumer purchaser. We will provide perfect after-sales service.(The official warranty can only be provided to customers who have officially ordered. If you purchase the product from another agent, please contact the purchasing merchant for warranty service.)

Please contact: Lydia@minisforum.com

Notice:

Our barebones configuration: No RAM No Storage. Windows activation license key not includ
